150M 200M High speed Diesel Engine Rock Core Drilling Machine for Mining

Hydraulical vertical shaft rotary drilling, lightweight and multi-purpose engineering survey and construction drilling rig

Engine power: 22HP

Drilling depth Max: 200M

Drilling hole diameter: 75-325mm

Drilling rod: 60 50 42mm

Drilling inclination angle: 75-90 degrees

Share With :

اصنع

طلب

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

رحلة إلى

النبات

خدمة ما قبل البيع

خدمات دعم المبيعات

خدمة ما بعد البيع

النصيحة 1. تزويدك بحل تصميم مجاني. النصيحة

2. التوجيه الفني من فريق محترف.

150M High speed Diesel Engine Rock Core Drilling Machine for Mining

1. This drilling rig is a high-speed drilling rig suitable for drilling projects such as census exploration, geophysical exploration, road and building exploration, and blasting holes.

2. According to the different bottom layers, drill bits such as alloy, diamond and composite pieces can be used for drilling.

3. It can drill sandy clay and rock formations of grade 2-9.

Advantages

1. It enhances drilling efficiency and reduces labor intensity through the use of a hydraulic automatic feeding mechanism.

2. Changing rods can be accomplished without stopping, making it easy to operate, safe, and reliable with the ball clip holding mechanism or hydraulic chuck.

3. The inclusion of a hole bottom pressure gauge enables easy monitoring of the hole's conditions.

4. Additionally, the compact structure, concentrated handle, small footprint, lightweight design, strong decomposition, and ease of mobility make it suitable for operation in both plain and mountainous areas.

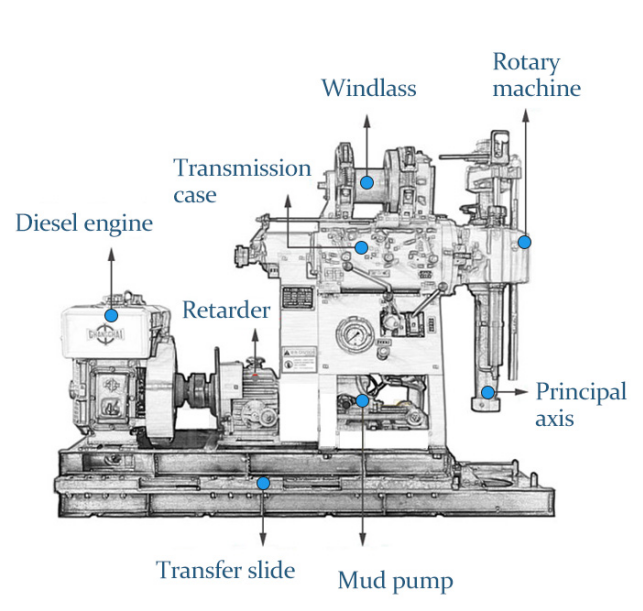

Machine structure

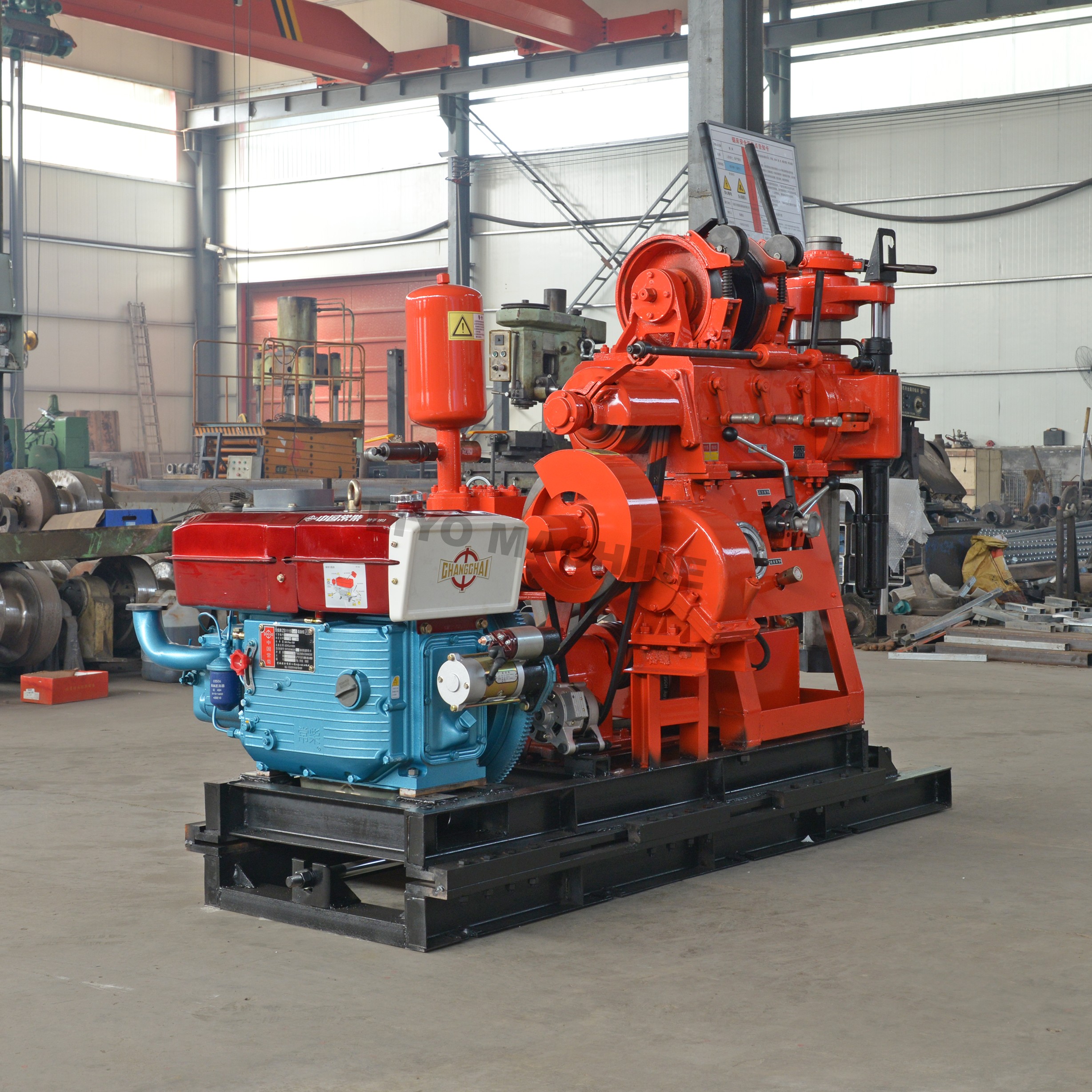

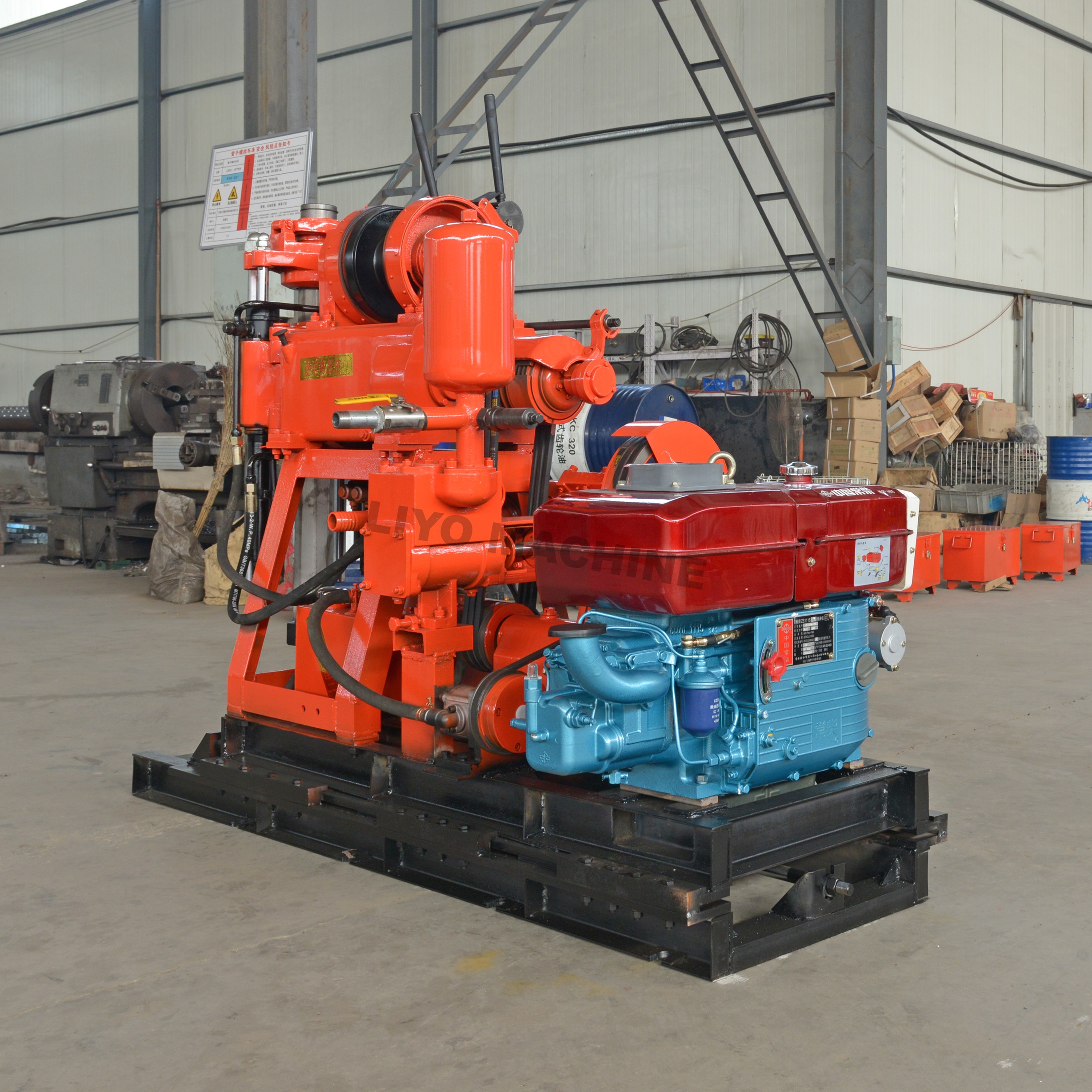

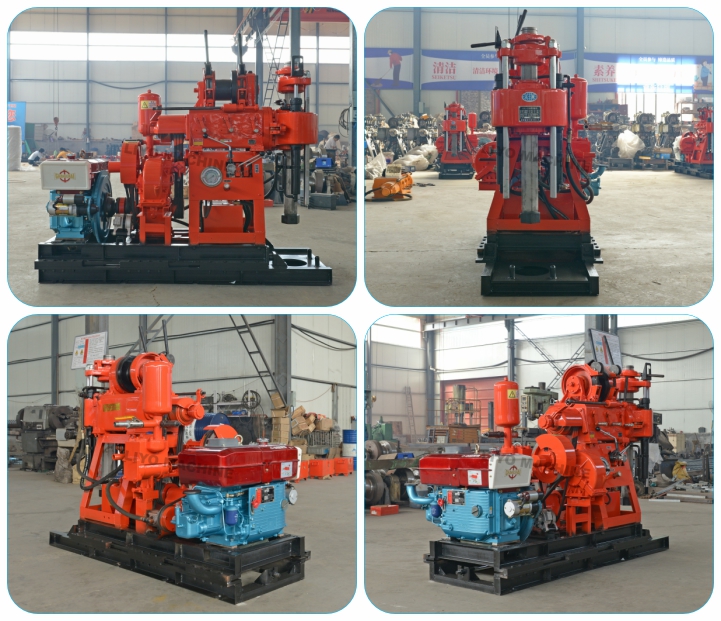

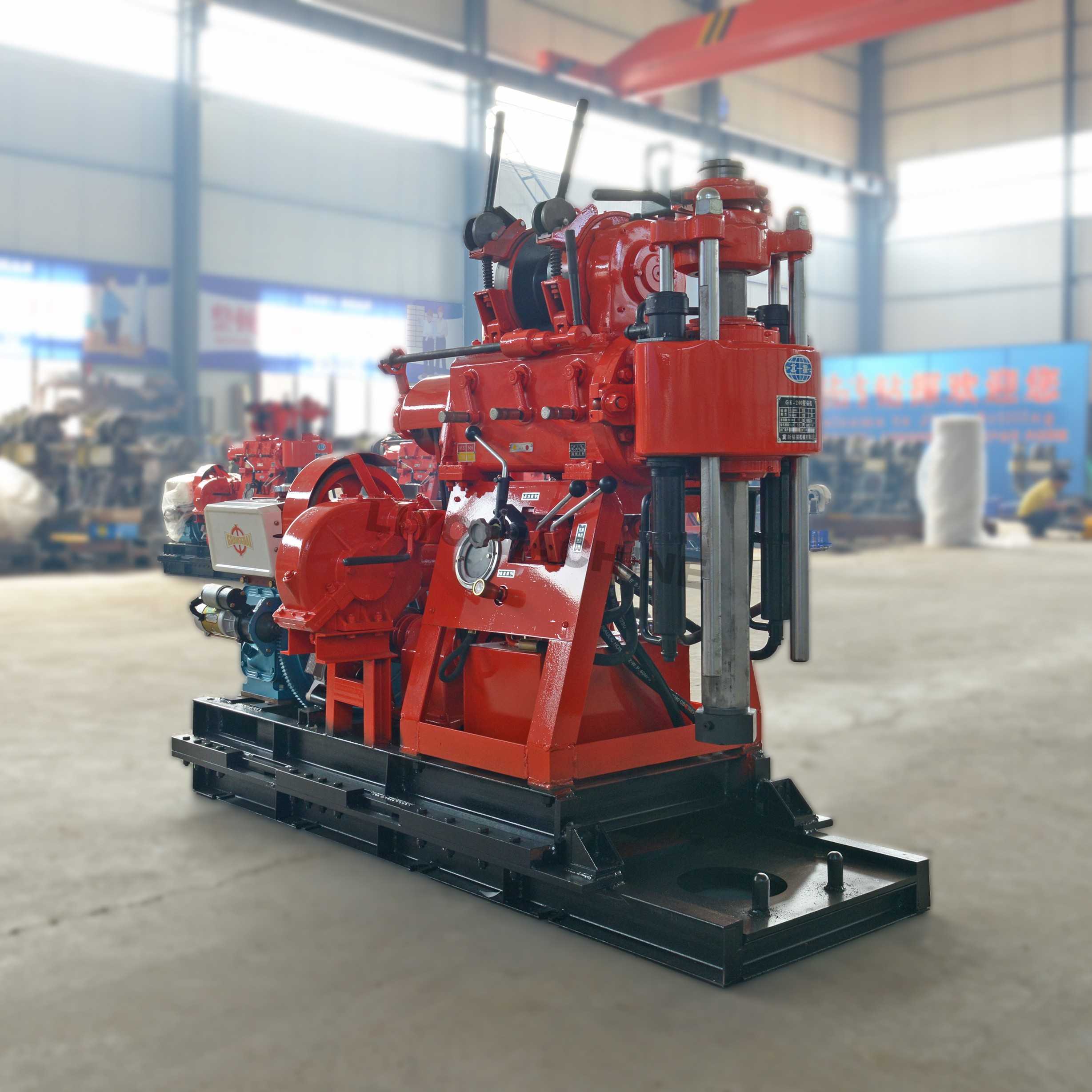

Machine photos

Package



الدليل

آلات لييو-

التركيز على تصنيع منصات حفر الآبار الهيدروليكية، ومتطلبات الجودة صارمة

تأسست شركة Zhengzhou Liyo machinery co., Ltd. في عام 2002، وتقع الشركة في مدينة تشنغتشو، مقاطعة خنان، الصين، وتغطي مساحة 20000 متر مربع، ويبلغ عدد الموظفين الحاليين أكثر من 200 شخص، وأكثر من 30 مهندسًا كبيرًا. لدينا فريق محترف من المهندسين ذوي الخبرة الغنية في تصميم وإنتاج منصة حفر آبار المياه. نحن نقدم خدمة ما بعد البيع الجيدة لضمان التشغيل الناجح لمنصة حفر آبار المياه الخاصة بنا.
