LY-300 300m High Efficiency Rock Core Sampling Mining Drilling Rig

The LY-300 drilling rig is a mechanically driven hydraulically fed vertical shaft rotary, lightweight and multi-purpose engineering survey and construction drilling rig.  Depending on the different strata, diamond, carbide, spiral and other drill bits can be used for drilling.

Application

It is suitable for industrial and civil construction, as well as engineering geological surveys such as roads, railways, bridge foundations, water conservancy, water wells, prospecting, shallow oil and natural gas mining, mine tunnel ventilation, drainage and small-diameter foundation pile hole construction, etc.

Main technical data

Drilling diameter: 59, 75, 91, 110, 273, 350mm

Drilling depth: 400, 300, 250, 200, 100, 50m

Drill rod diameter: 42, 50mm

Drilling angle: 0°-90

Drilling rig size: 1830X760X1500mm

Drilling rig weight (excluding power): 915·985Kg

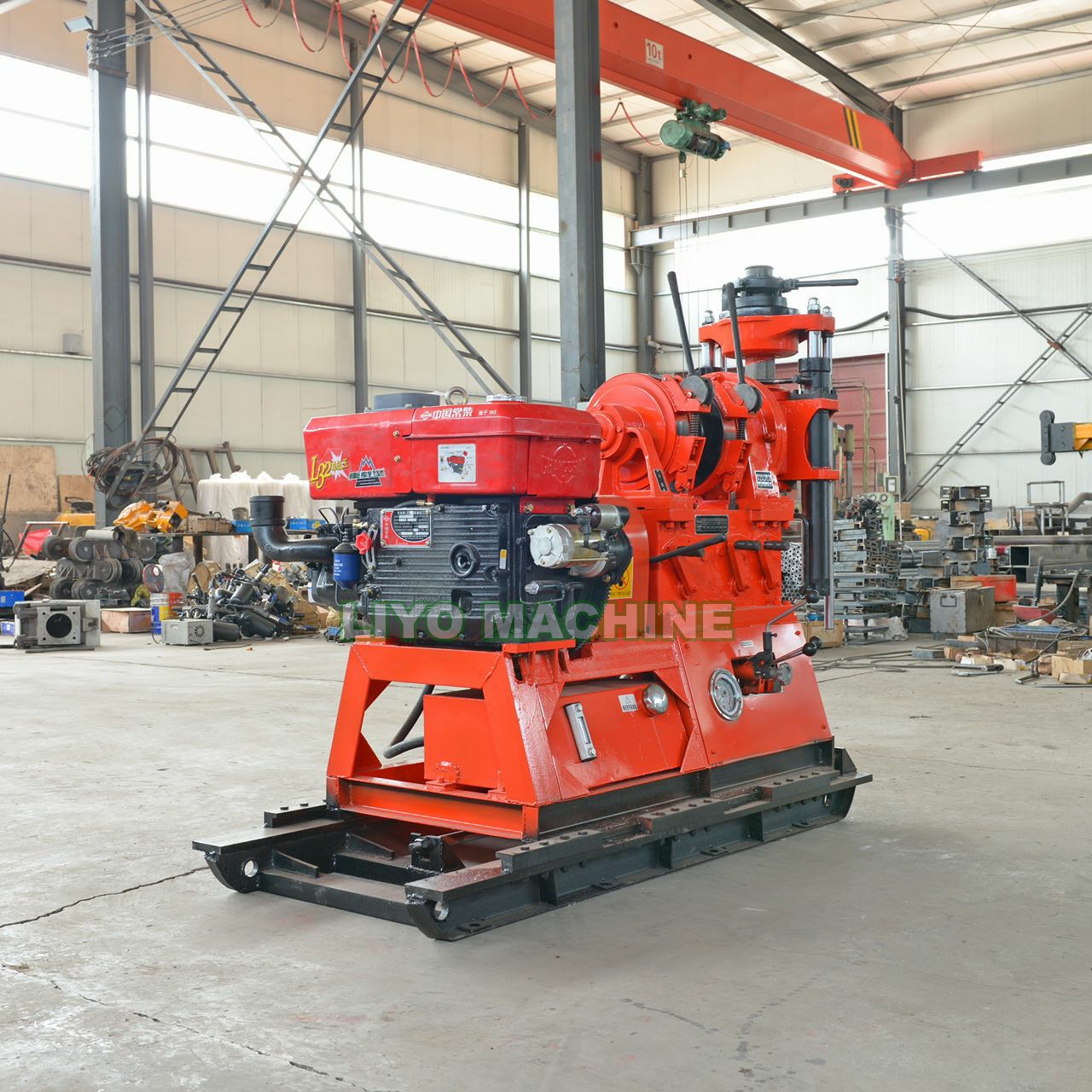

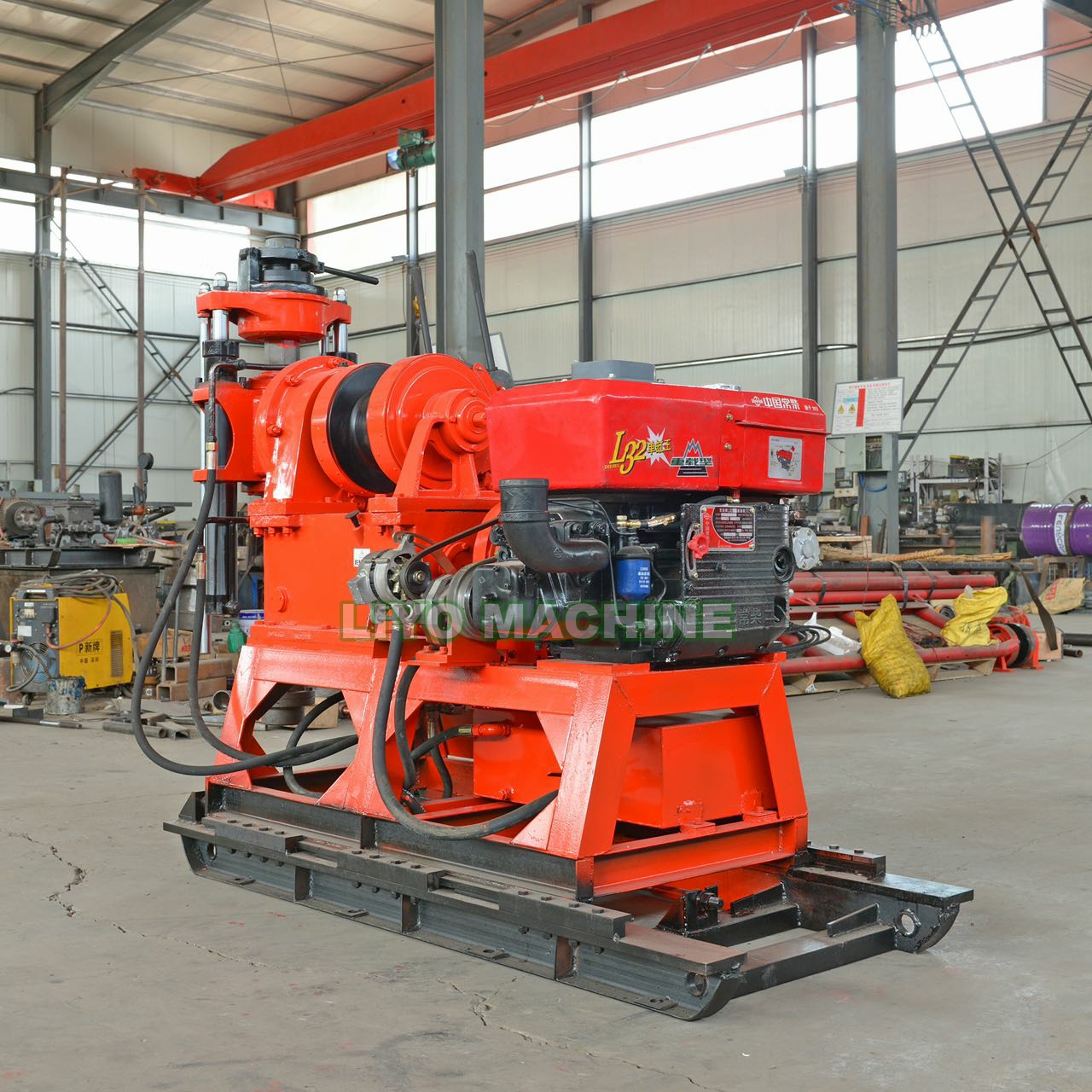

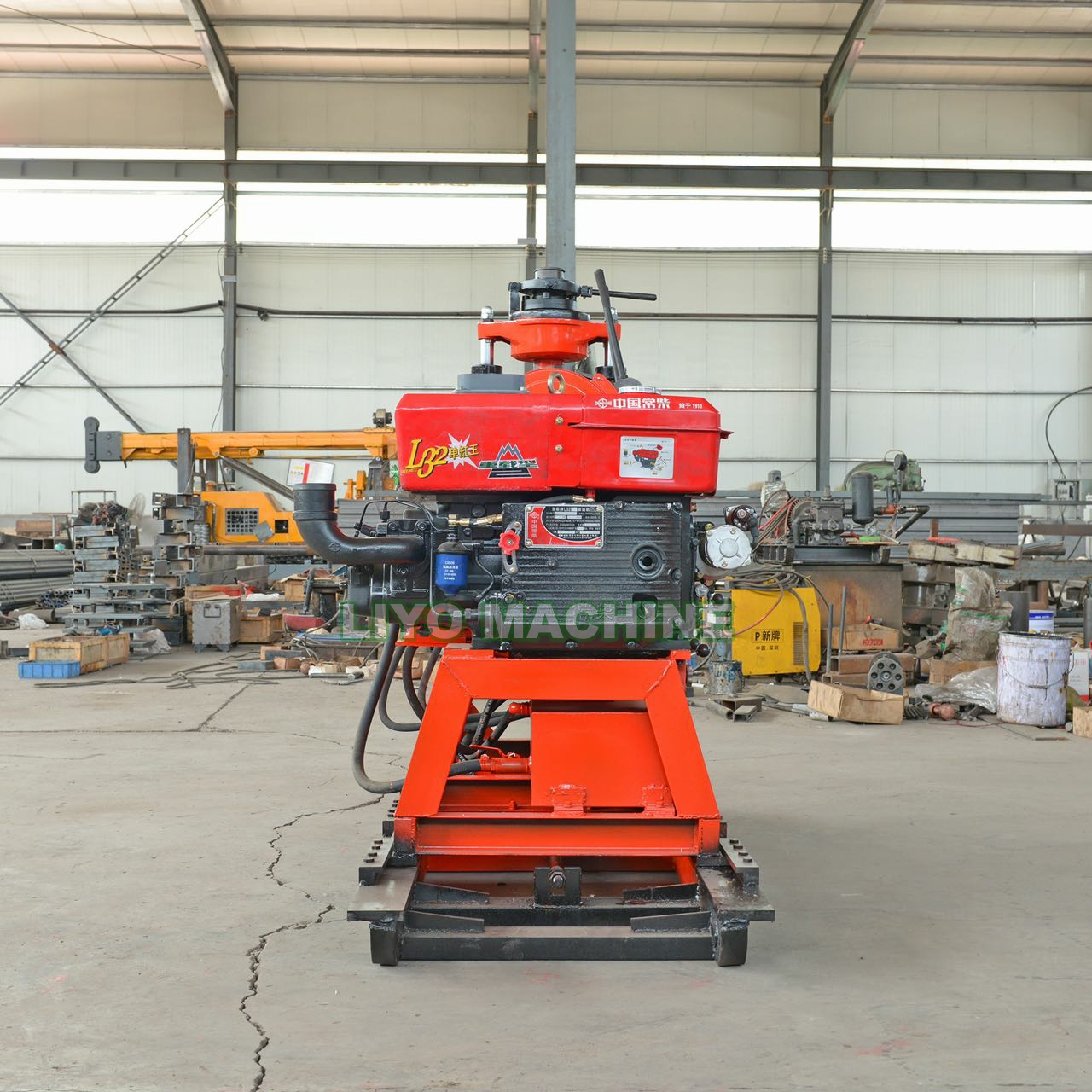

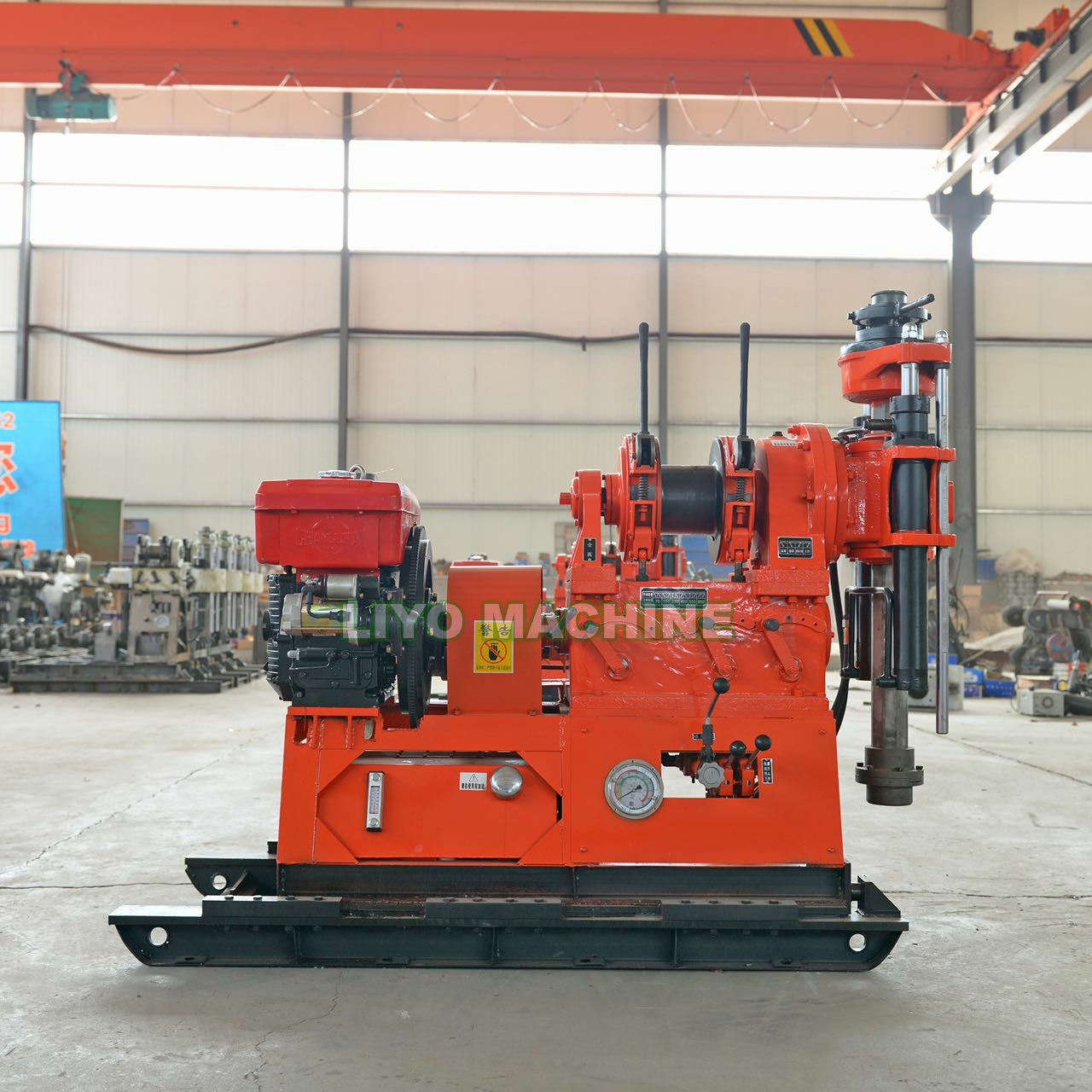

Machine photo

Package
